熟料輸送機

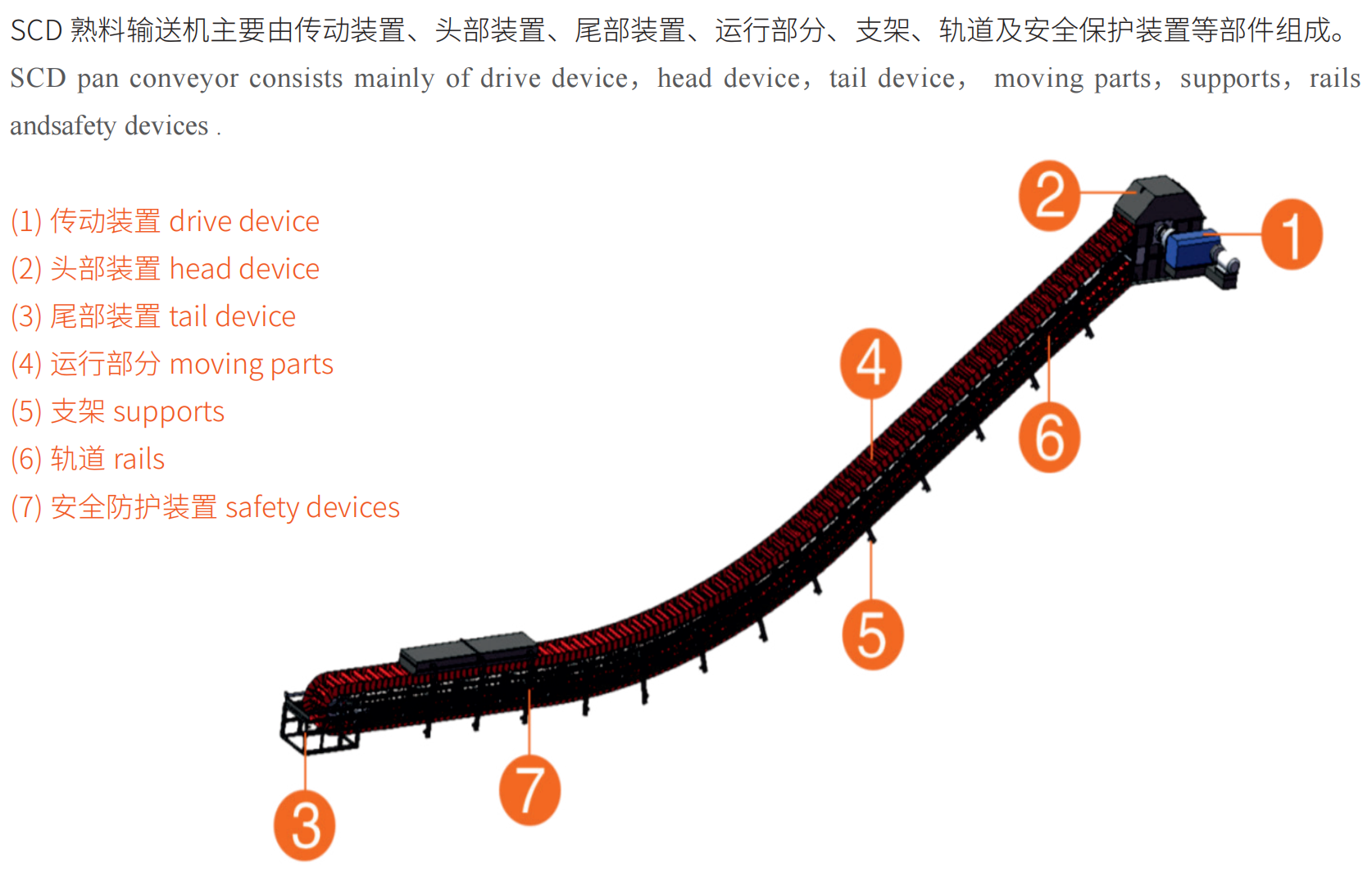

熟料輸送機結構特點
采用了合理可靠的結構設計和先進工藝流程，動載荷?。ㄅc齒數的平方成反比）、受力小、磨損小，運行平穩， 使用壽命長，可靠性好，所有運行部件運行效果達到最佳，極大提高了使用壽命，同時與其它國產設備相比能耗大大降低，可以為用戶節約大量電耗。
SINOMA-TCDRI pan conveyors feature a rational and reliable structure as well as an advanced process. It has characteristic of small dynamic load (it is inversely proportional to the square of the number of gears), small force, little wear and steady running, long service life and reliable operation. All the moving parts are in best condition which extends service life.
●頭部輪軸組采用雙楔塊定位，安裝調節更簡單。
The head sprocket group use double wedge positioning, installation and adjustment become easier.
●鏈輪分體式設計，鏈輪磨損只需更換齒圈。
The sprocket split design, just replace the gear ring when the sprocket wear.
●齒圈分成多片，更換齒塊更容易。
Gear ring divided into multiple pieces so that gear block can replace easier.
●齒圈為雙切齒，鏈輪轉動兩圈每個齒才嚙合一次，使用壽命更長。
Gear ring is double tangent teeth，when the sprocket turns two circles, every teeth only joggles once. It can
have a longer using life.
●齒圈通過連接脹套與輪轂聯接，可增加聯接處的抗剪截面，提高抗剪切力及聯接螺栓的使用壽命。
Gear ring connected by the expansion sets and hub, it can increase shear-section of the connection, and improve the shear strength and life time of connecting bolt.
產品特點
●輸送量大，可達 1100t/h。
Large conveying capacity，up to 1100t/h.
●可水平和傾斜輸送，輸送角度大。
It can be conveyed horizontally and obliquely，and the conveying angle is large.
●輸送高度達 70 多米，輸送距離可達 200m。
The conveying height can reach more than 70 meters and the conveying distance can reach 200 meters.
●承載與牽引分開，鏈條只起牽引作用。
The load-bearing and traction of the equipment are separated, and the chain only plays a role of traction.
●配置靈活，可根據使用工況選用鍛鏈與板鏈，料槽與料斗。
Flexible configuration and can choose forging chain or plate chain, bucket or hopper according to the working
conditions.
●驅動裝置有多種布置形式。
Driving device has different arrangement.
●自主研發適用于 450℃ -- 600℃高溫物料的熱料輸送機。
Special hot material conveyor is suitable for 450 ℃ - 600 ℃ high temperature materials.

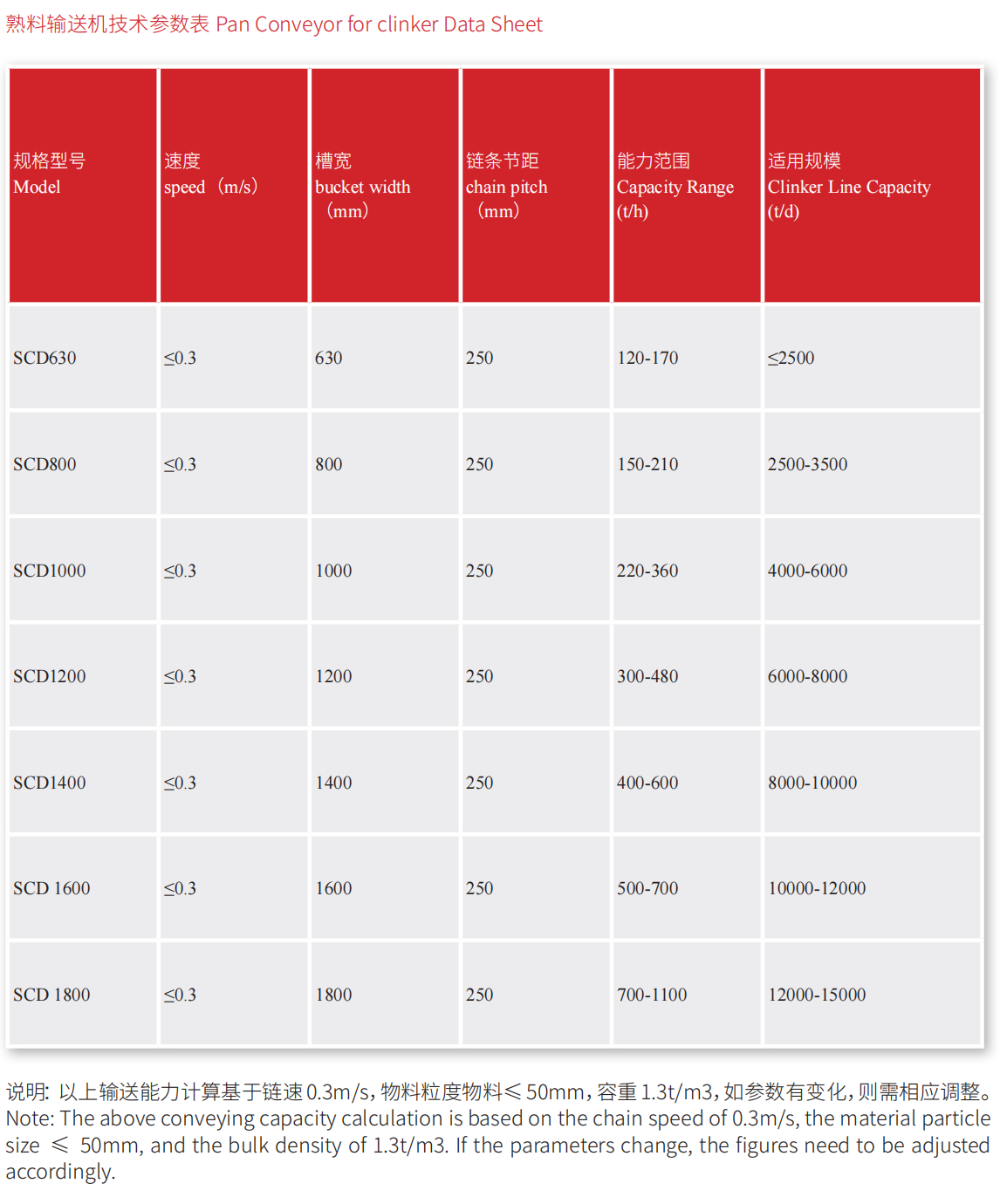

技術參數
